IP69K washdown
Fully sealed construction for food, beverage, and other sanitary production environments.
MC All Products
One Motion direct-drive products for cleaner, more efficient production lines.
MC All focuses heavily on One Motion technology for manufacturers that need hygienic conveyor motion, reduced maintenance, and practical retrofit paths without overcomplicating the product presentation.
IP69KOil FreeGearbox FreePMM VFD Compatible
Gearbox free
Direct-drive motion reduces maintenance points, oil handling, and line-stopping wear.
PMM VFD compatible
Designed to work with VFDs that support permanent magnet motors for flexible controls.
3-year warranty
Backed by One Motion support for reliable operation and long service life.

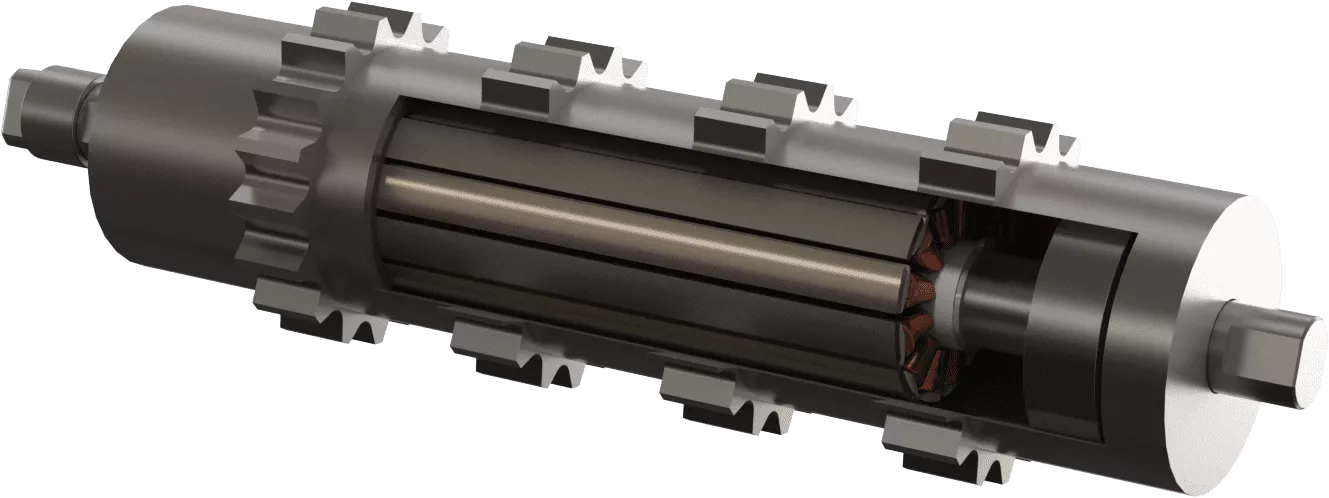

Magnetic direct drive technology
Mag Drive
A hygienic direct-drive alternative to motorized pulleys, drum motors, and servo-driven conveyor systems. Mag Drive is built for cleanable production areas where uptime, energy efficiency, and simplified maintenance matter.
Drop-in or bolt-in installation
Custom shell profiles for popular belt types
Oil-free, gearbox-free, fully sealed design
- Best fit
- Belt-driven conveyor motion and sanitary drive upgrades
- Construction
- IP69K stainless steel, fully sealed assembly
- Controls
- Compatible with PMM-capable variable frequency drives

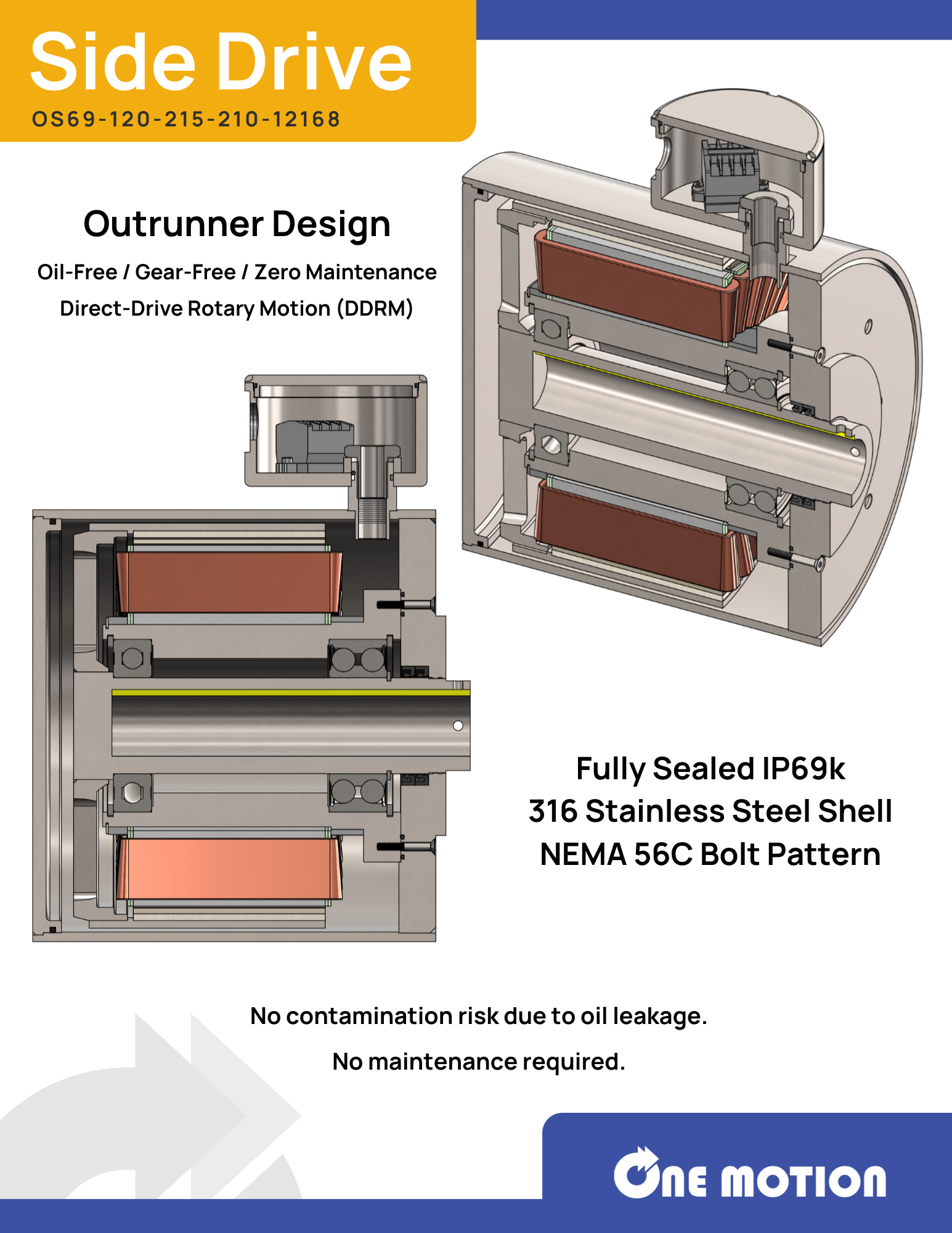

Direct-drive rotary motion
Side Drive
A compact rotary direct-drive solution engineered to replace 1 HP AC motor plus gearbox or servo motor plus gearbox systems in washdown and food-grade environments.
56C face / torque arm mount for easy retrofits
40Nm continuous torque with 120Nm peak output
Smooth cleanable design with zero external moving parts
- Best fit
- Gearbox-driven conveyor retrofits and rotary drive applications
- Torque
- 40Nm continuous / 120Nm peak
- Setup
- Standardized VFD parameters after first installation
Condensed product fit
Two direct-drive paths, one simplified product story.
Mag Drive and Side Drive share the same One Motion principles: hygienic construction, direct magnetic motion, controller compatibility, and fewer maintenance demands than legacy motor-and-gearbox systems.
| Decision point | Mag Drive | Side Drive |
|---|---|---|
| Primary role | Hygienic conveyor drive with custom belt-shell profiles | Rotary direct-drive replacement for motor + gearbox assemblies |
| Maintenance goal | Remove gearbox, oil, and routine lubrication from conveyor drive areas | Reduce external moving parts and gearbox service in retrofit applications |
| Typical advantage | Efficient direct motion for clean production lines | High continuous and peak torque in a compact washdown format |

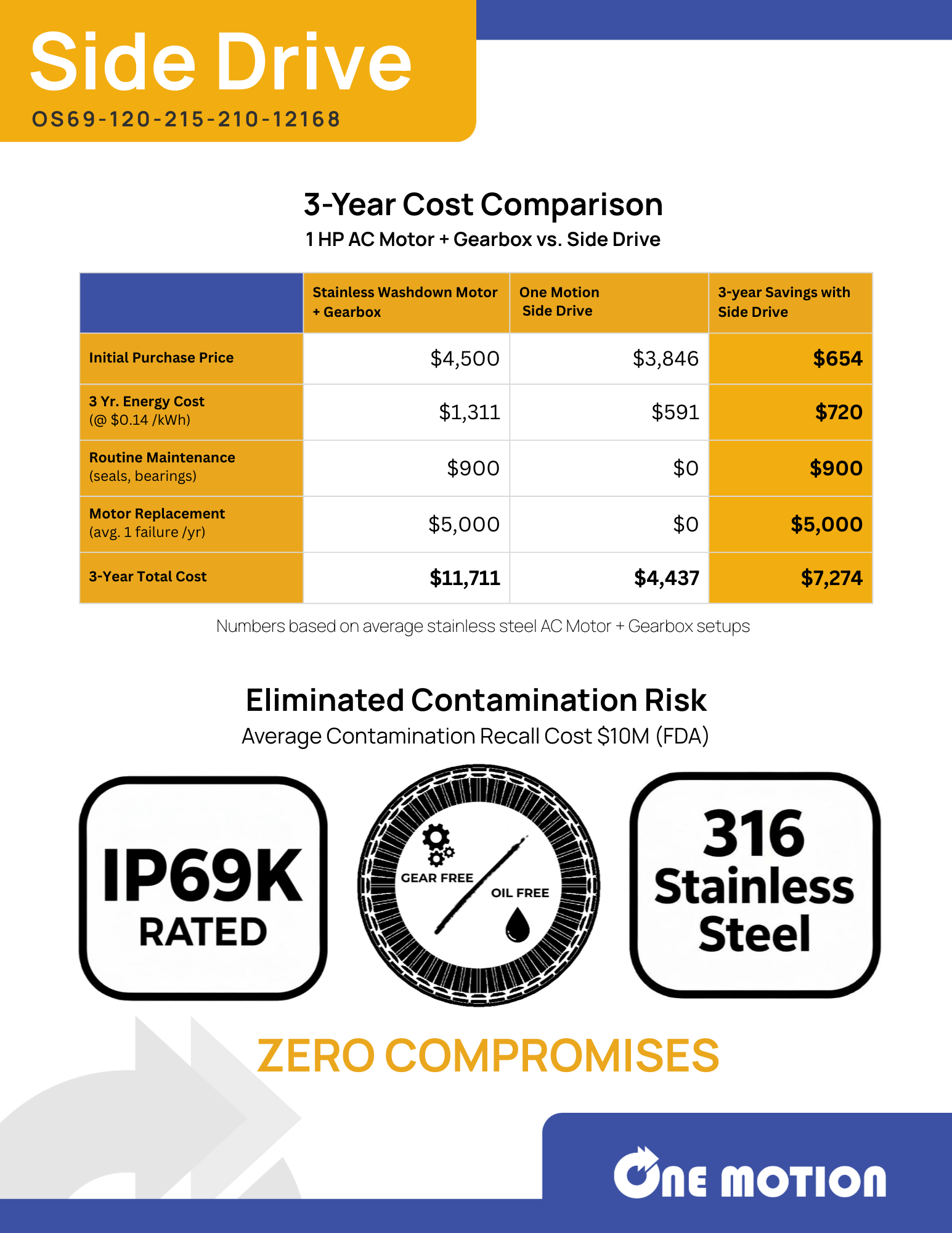

Why customers evaluate Side Drive
Designed to reduce cost, contamination risk, and gearbox maintenance.
The Side Drive source material highlights 316 stainless steel, IP69K washdown protection, oil-free construction, and gear-free operation. MC All can use this as a practical retrofit conversation for lines where cleanliness and maintenance are persistent issues.
Request Product Guidance
Application support
Need help choosing the right direct-drive product?
Share your conveyor layout, washdown requirements, torque needs, and retrofit constraints. MC All can help narrow the product direction before moving into quotation and integration details.
Talk With MC All
